This manual tells you how to export route files from MyRoute-app to your Harley Davidson Boom Box. These are for the most part translated from Harley Davidson's own manuals.


Please note! There is a distinction between models from before 2019 and devices from the year 2019. For the latest models Harley Davidson has not yet made manuals available and so we cannot share them with you.


We would like to give you the following tips in advance:

  • Always create routes that you will use on your Harley Davidson Boom Box on the HERE map in the MRA route planner;
  • For more information on exporting and 'saving as' in general, see General information about 'export' and 'save as';
  • For more information on creating, using and adding POIs, see our Manuel 'POI'.
  • For specific videos about different navigation systems you can always check out our Youtube channel.


Exporting to HD Boom Box PRE 2019 (route)

General information in advance

  • A route consisting of more than 49 waypoints is likely to freeze in the HD Boom Box infotainment system.
  • If the HD Boom Box crashes, turn off the engine, wait 10-20 seconds, and then restart the engine.
  • The HD Boom Box may be slow to respond when you click a button. Give the system time before clicking multiple buttons.
  • The HD Boom Box infotainment system only includes English as the language available for text and speech.


Transferring routes to a USB stick

  1. Attach a USB stick to your laptop or computer.
  2. Open a route in the route editor and select "Save as" -> "Harley Davidson Boom Box pre 2019"
  3. Save the "GPX" file to your USB stick in the top directory.


Importing routes and route-tracks from the USB stick to the BoomBox infotainment system

  1. Turn on the BoomBox infotainment system and wait until the main menu appears.
  2. Attach the USB stick to your Harley Davidson.

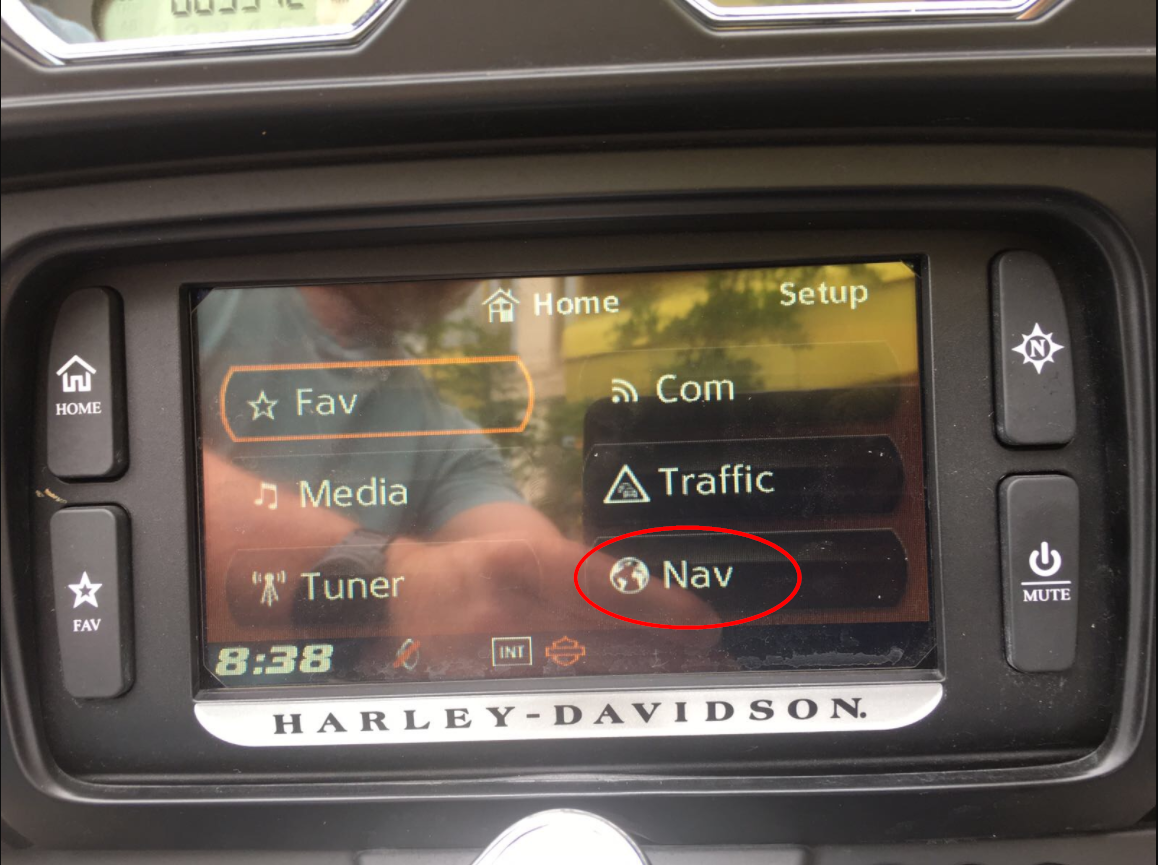

  3. Press the 'Nav' button in the main menu;

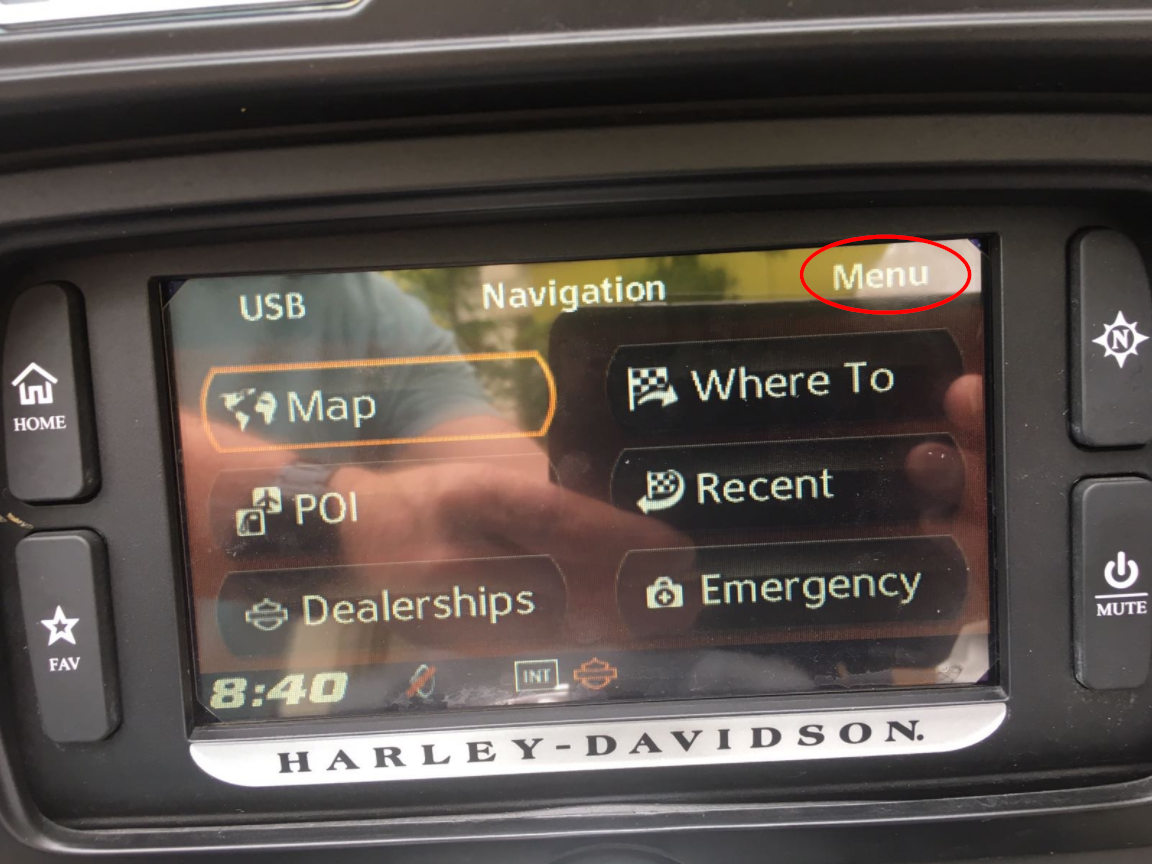

  4. Select "Menu" (top right corner).

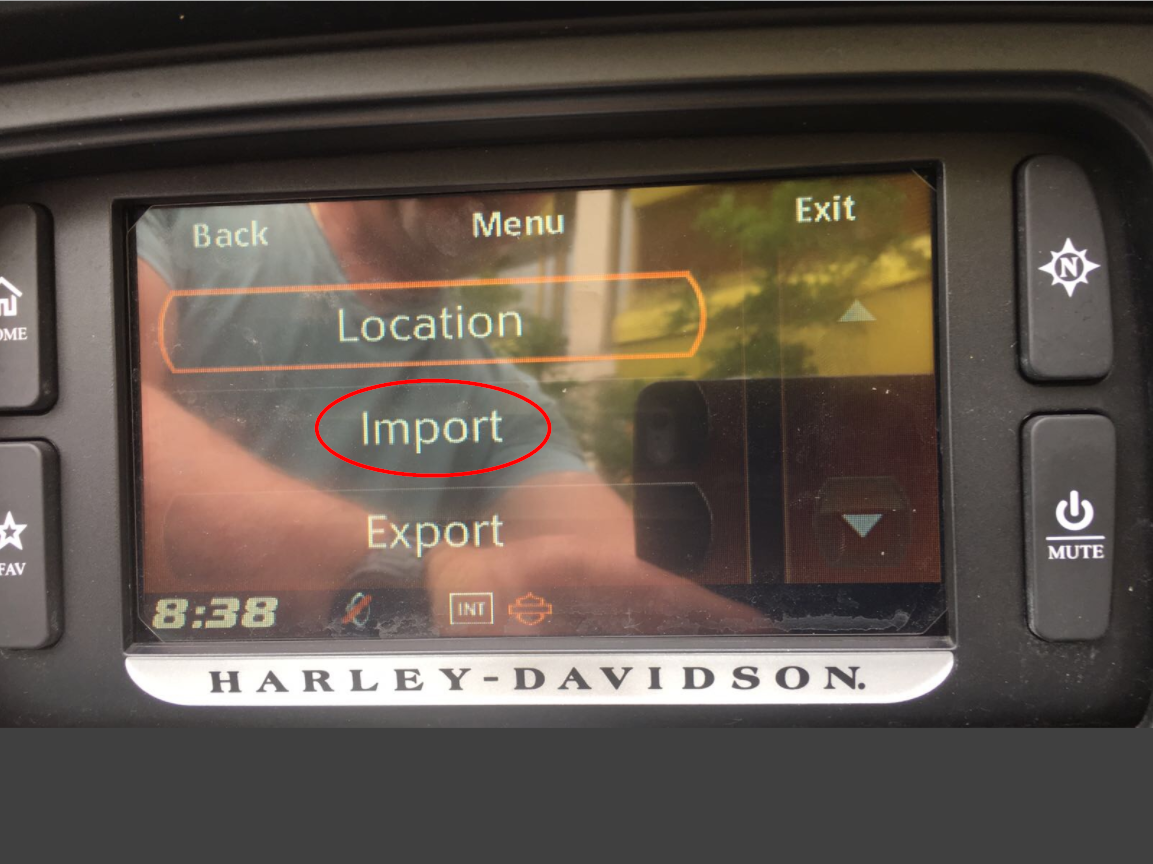

  5. Press 'import';
  6. Select your USB device.
    If it does not appear, check if the USB stick is properly connected or use a different USB stick that is formatted as FAT32.
  7. Select a route you wish to import.
    Note: A duplicate of each file will appear with a prefix of "._" in the name. Ignore these files and do not select them.

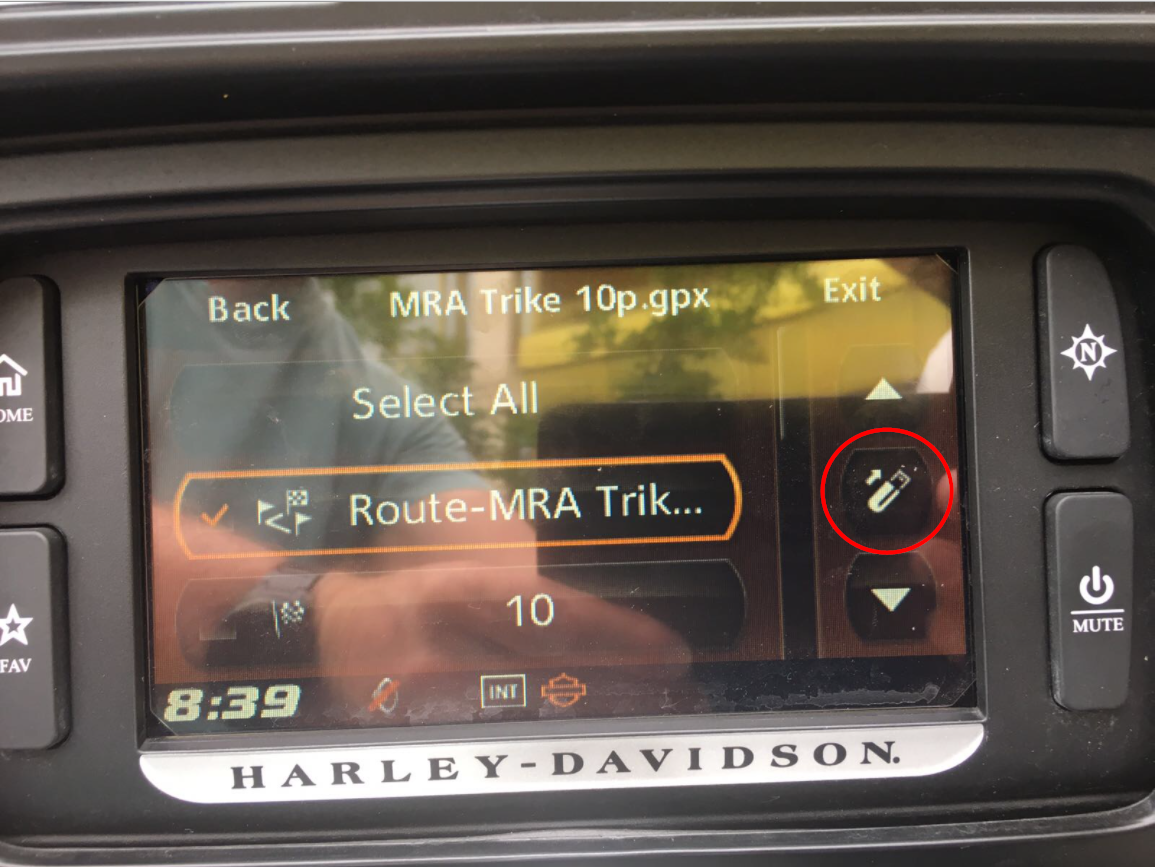

  8. Select "Route-[titel]" to navigate by route;

    Note: A route contains only waypoints which will lead to the BoomBox calculating its own route between the waypoints while respecting the route preferences of the device.

  9. Select the button on the right between the arrows to start the import. You might be asked for a confirmation, answer "YES" to the question.
  10. After completion, press back and import a different route if you wish to.
  11. You can now safely detach the USB stick and return to the main menu by repeatedly pressing the "Back" button.


Starting the navigation of an imported route or route-track

  1. Press the “Nav” button on the main menu.;

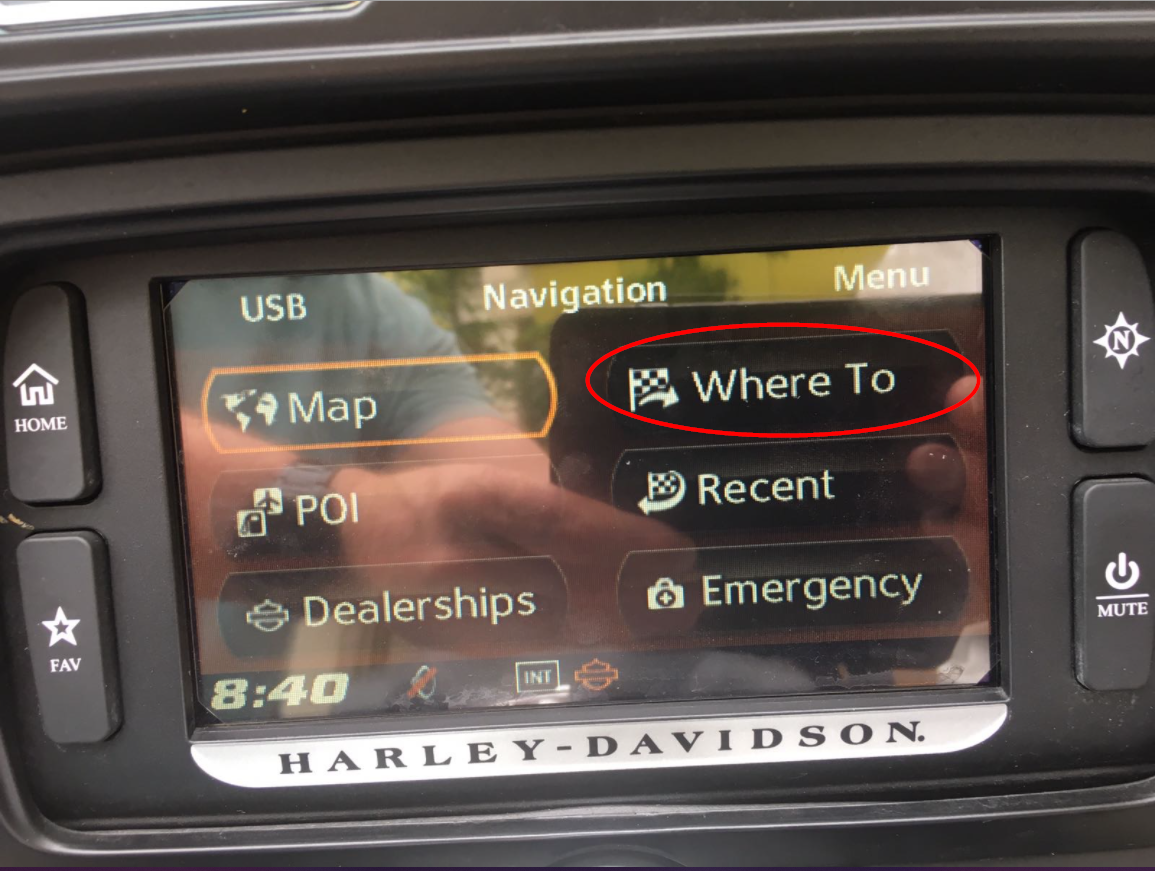

  2. Press the "Where to" button';

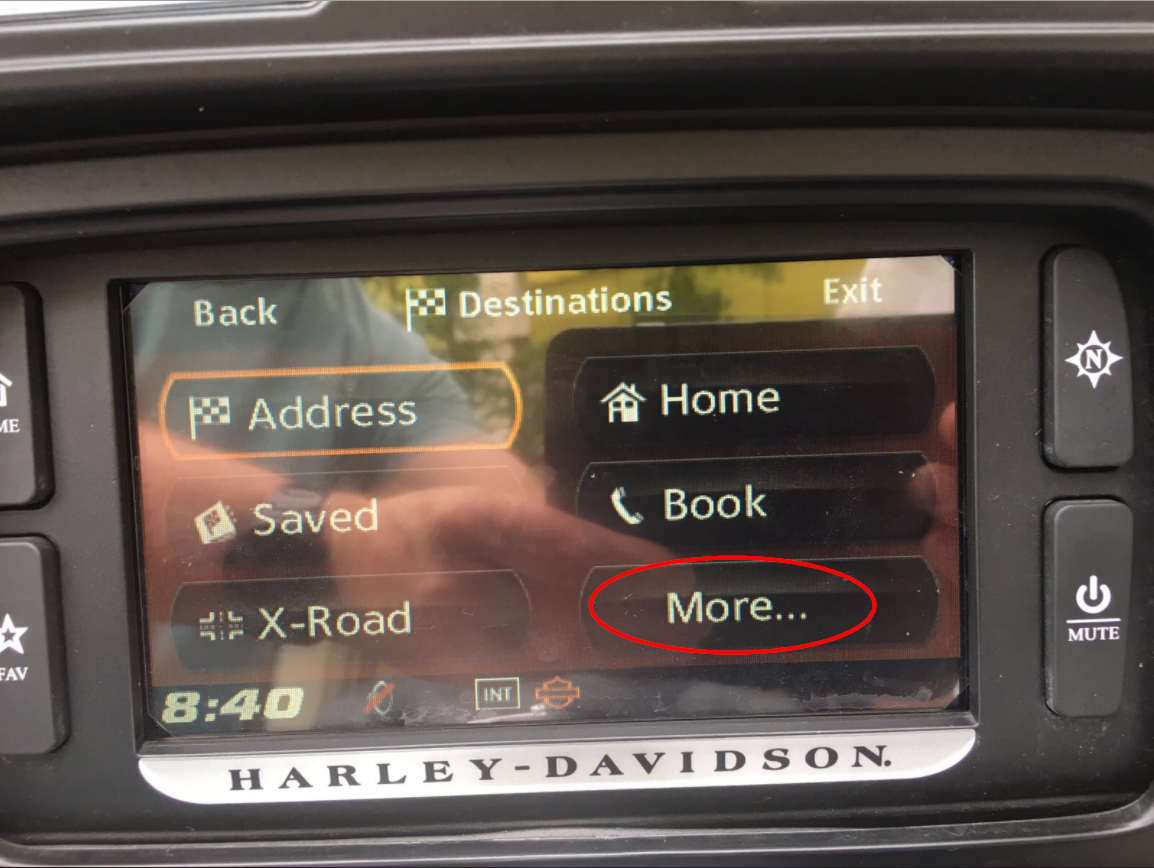

  3.  Press the "More" button;

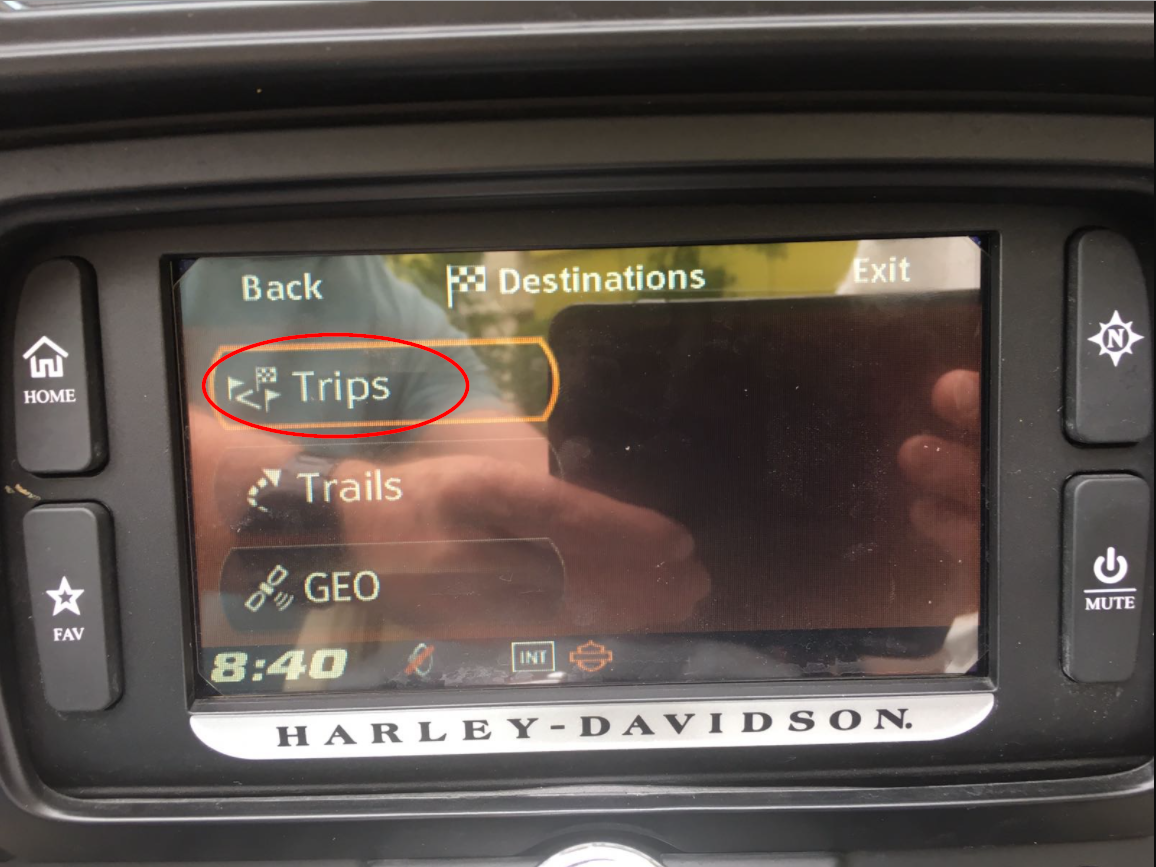

  4. Press "Trips" for navigating an imported route;
  5. Select the imported route you prefer to ride.
  6. Press "Start";
  7.  Wait until the BoomBox has finished loading the route. You can track its current progress displayed on the right.
  8. Press "Go" to start the navigation


Setting navigation preferences

You can change the navigation settings by clicking on the 'list' icon on the right hand side during navigation (see picture below). The following appearance settings are recommended by Harley Davidson: 3D map - Heading Up - Auto Zoom: Normal.





Exporteren naar HD Boom Box 2019 (track)

General information in advance

  • When importing a route of more than 500 kilometers please mind the fact that it could take long before the route calculation completes.


Transferring routes to a USB stick

  1. Attach a USB stick to your laptop or computer.
  2. Open a route in the route editor and select "Save as" -> "Harley Davidson Boom Box 2019"
  3. Save the "GPX" file to your USB stick in the top directory.



Importing routes and route-tracks from the USB stick to the BoomBox infotainment system

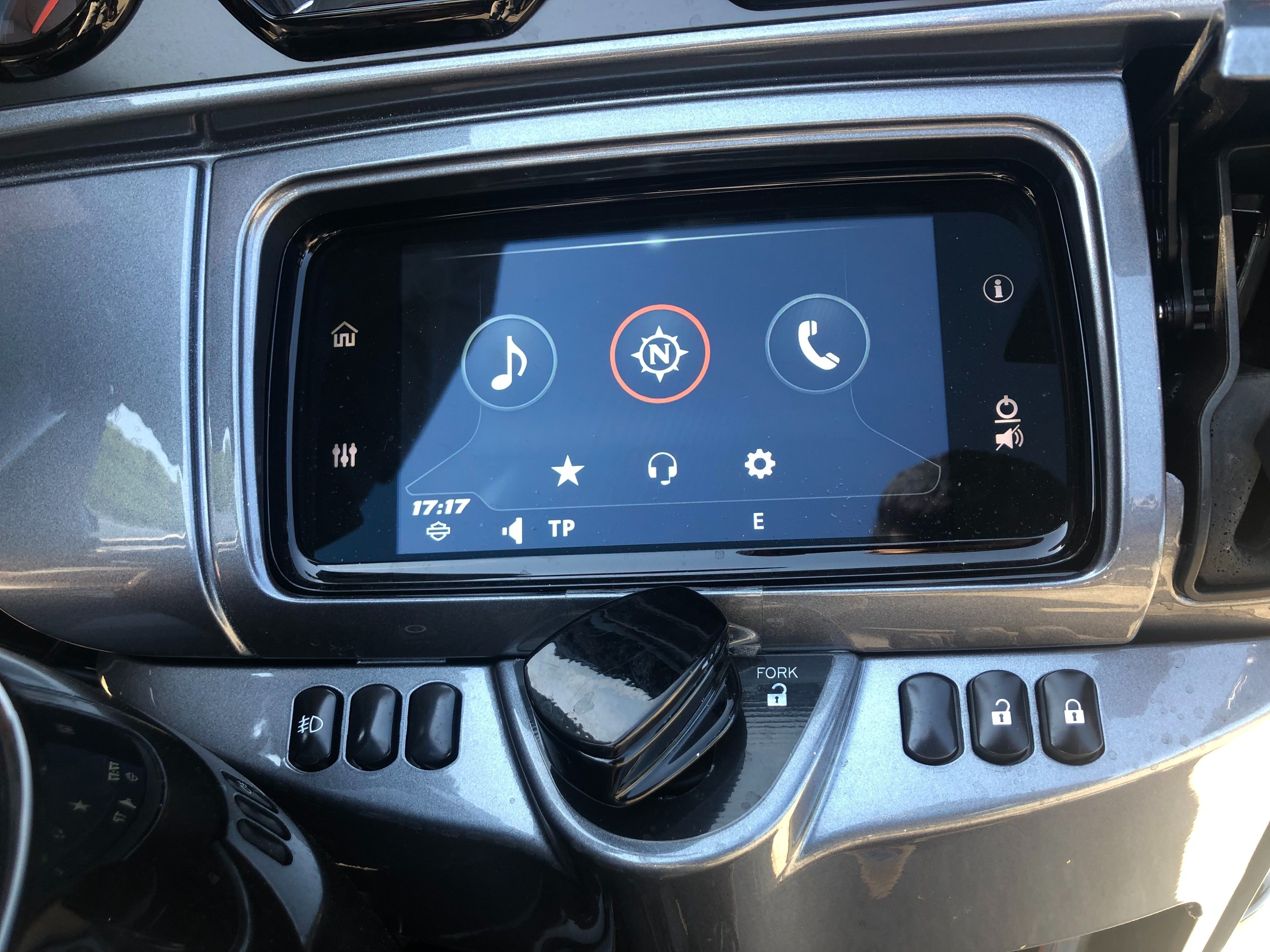

  1. Turn on the BoomBox infotainment system and wait until the main menu appears.
  2. Attach the USB stick to your Harley Davidson.
  3. Press the “Navigation” (middle) button in the main menu.;
  4. Select "Search" (top left corner);

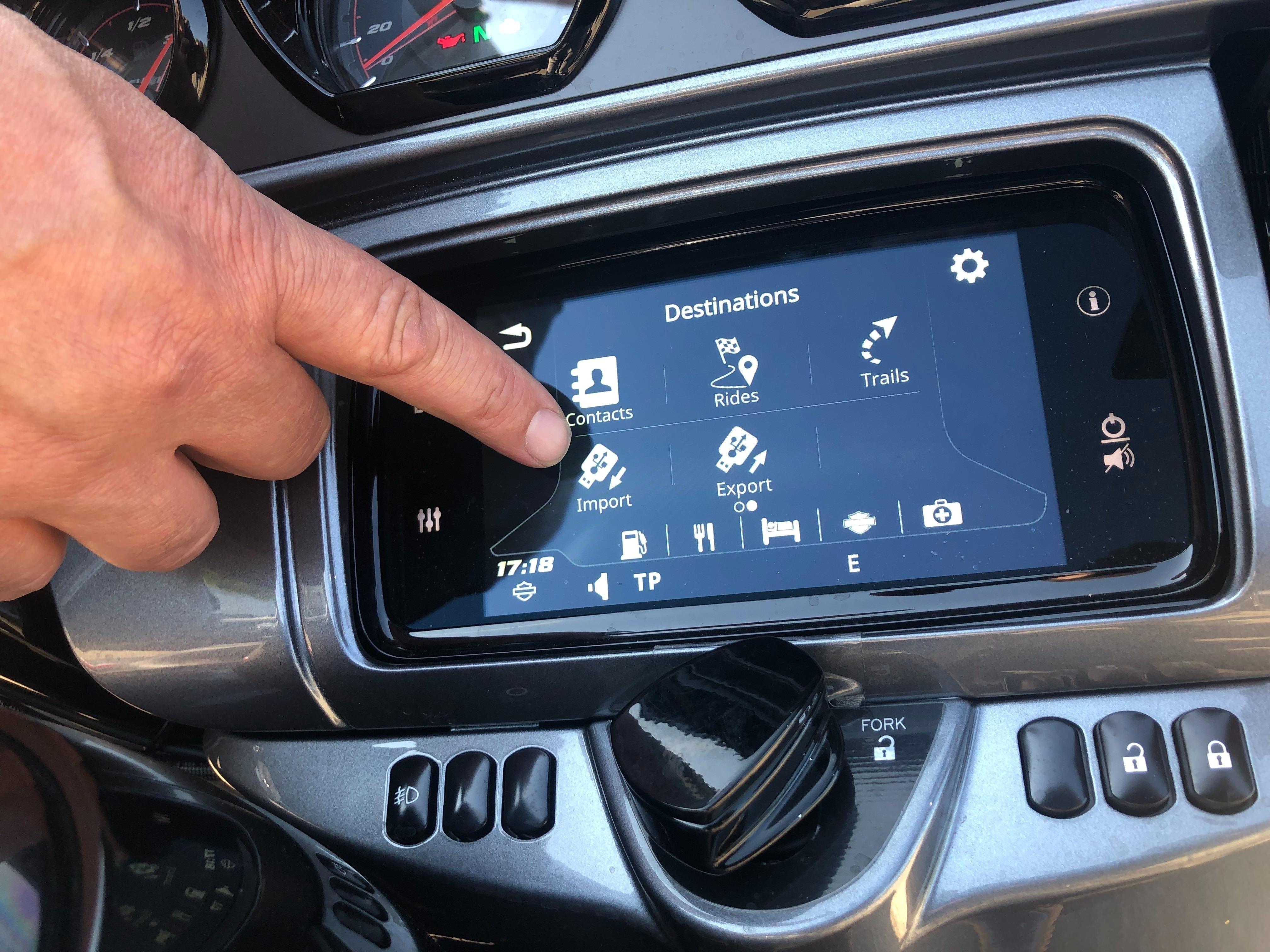

  5. Swipe the screen to the left to reveal the "Import" button. Then press the "Import" button;

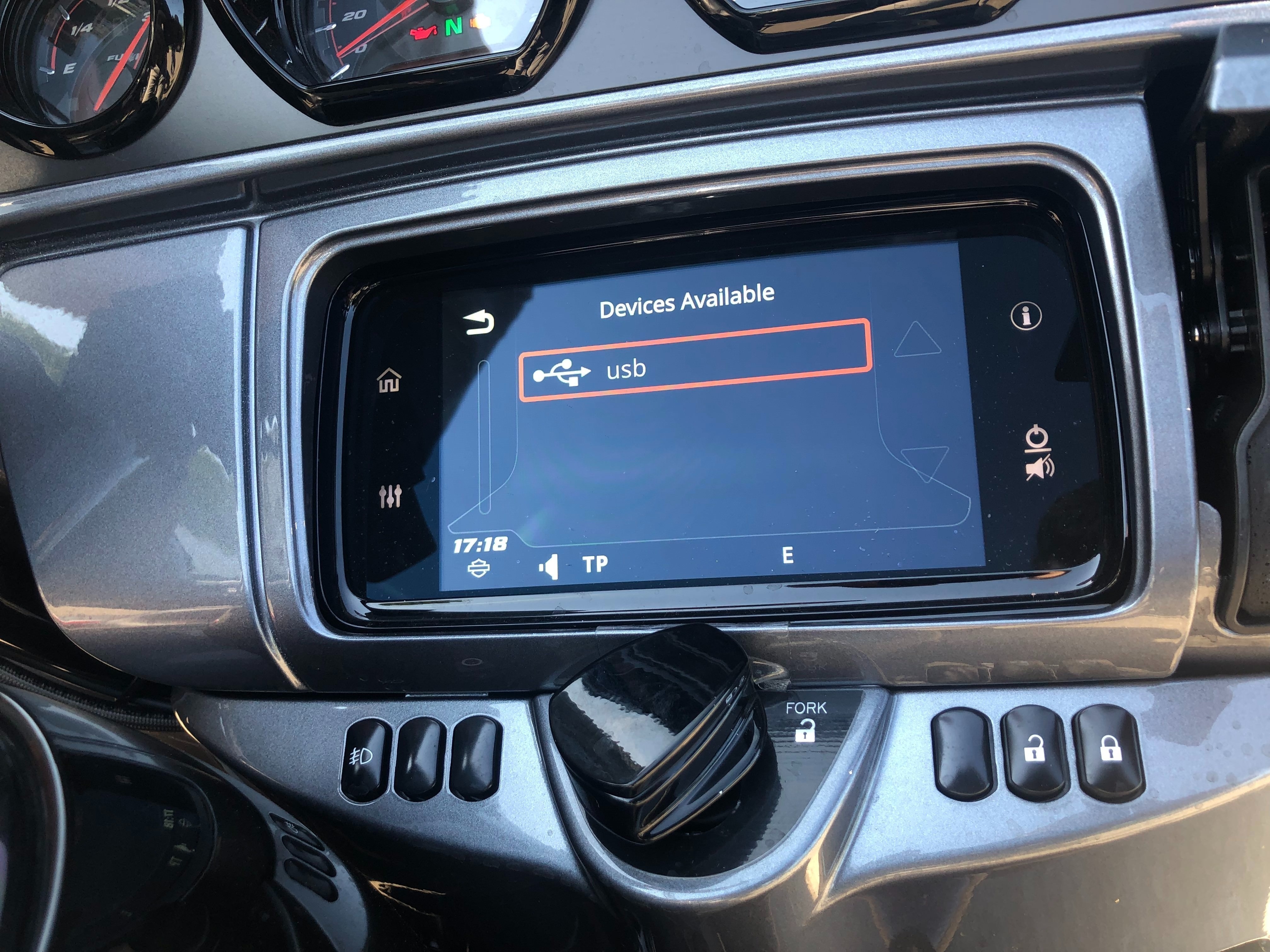

  6. Select your USB device.
    If it does not appear, check if the USB stick is properly connected or use a different USB stick that is formatted as FAT32.
  7. Select a route you wish to import.

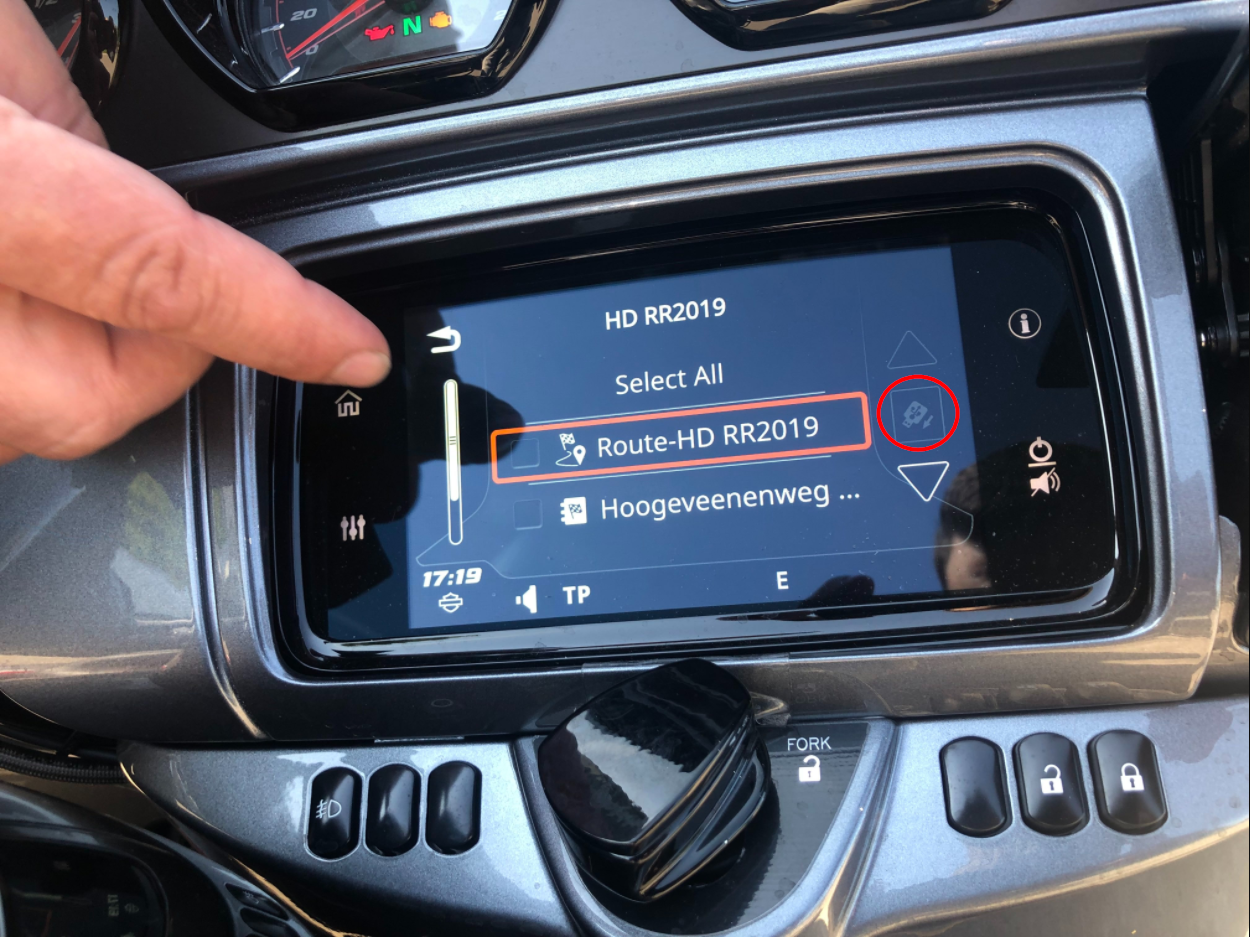

  8. Select "Route-[title]" to navigate by route;
    Note: A route contains only waypoints which will lead to the BoomBox calculating its own route between the waypoints while respecting the route preferences of the device.
  9. Select the button on the right between the arrows to start the import. You might be asked for a confirmation, answer "YES" to the question.
  10. After completion, press back and import a different route if you wish to.
  11. You can now safely detach the USB stick and return to the main menu by repeatedly pressing the "Back" button.


Starting the navigation of an imported route or route-track

  1. Press the “Navigation” button on the main menu;

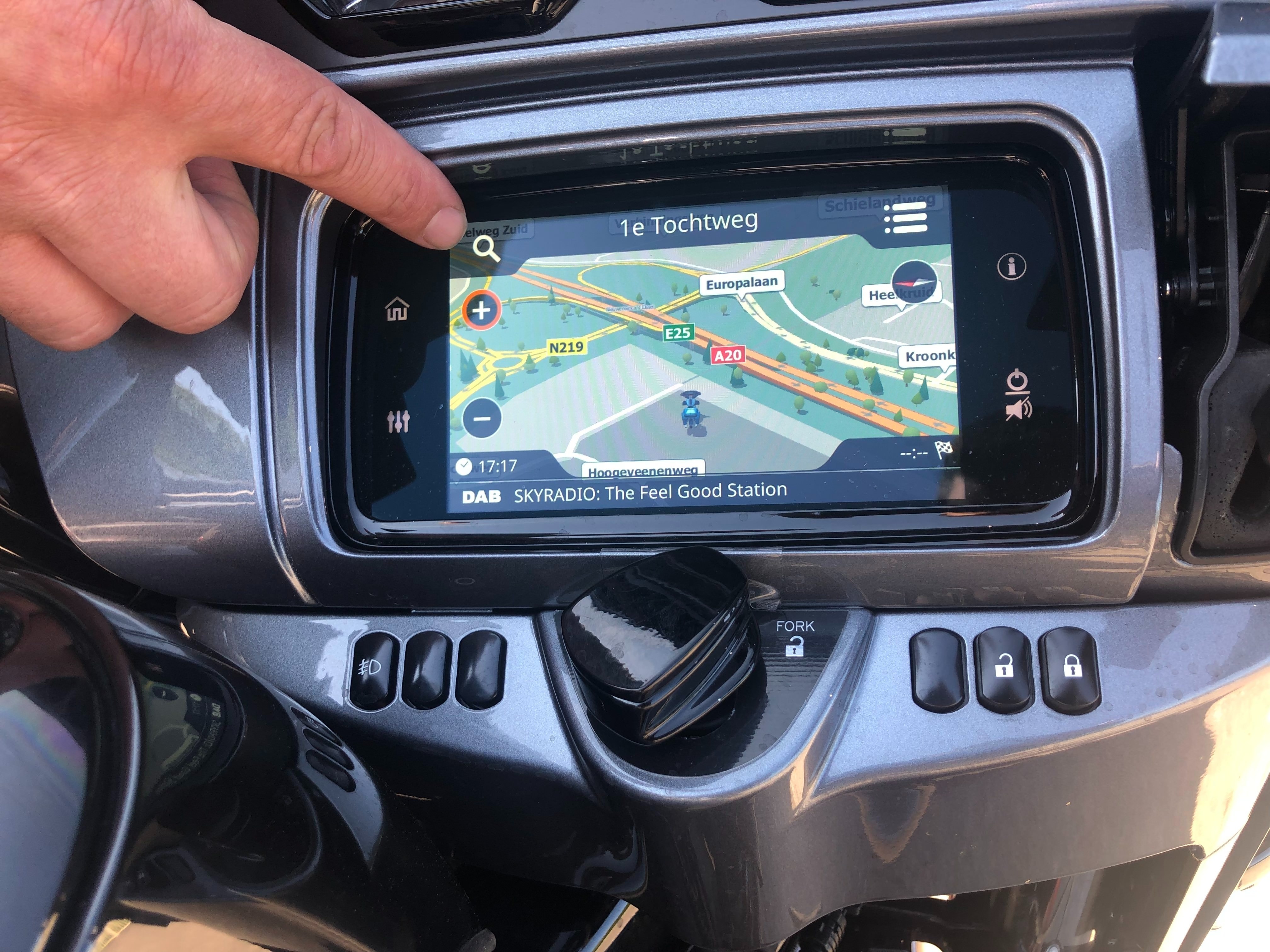

  2. Press the "Search" (top left) button;
  3. Swipe the screen to the left to reveal the "Rides" button. Then press the "Rides" button;
  4.  Select the imported route;

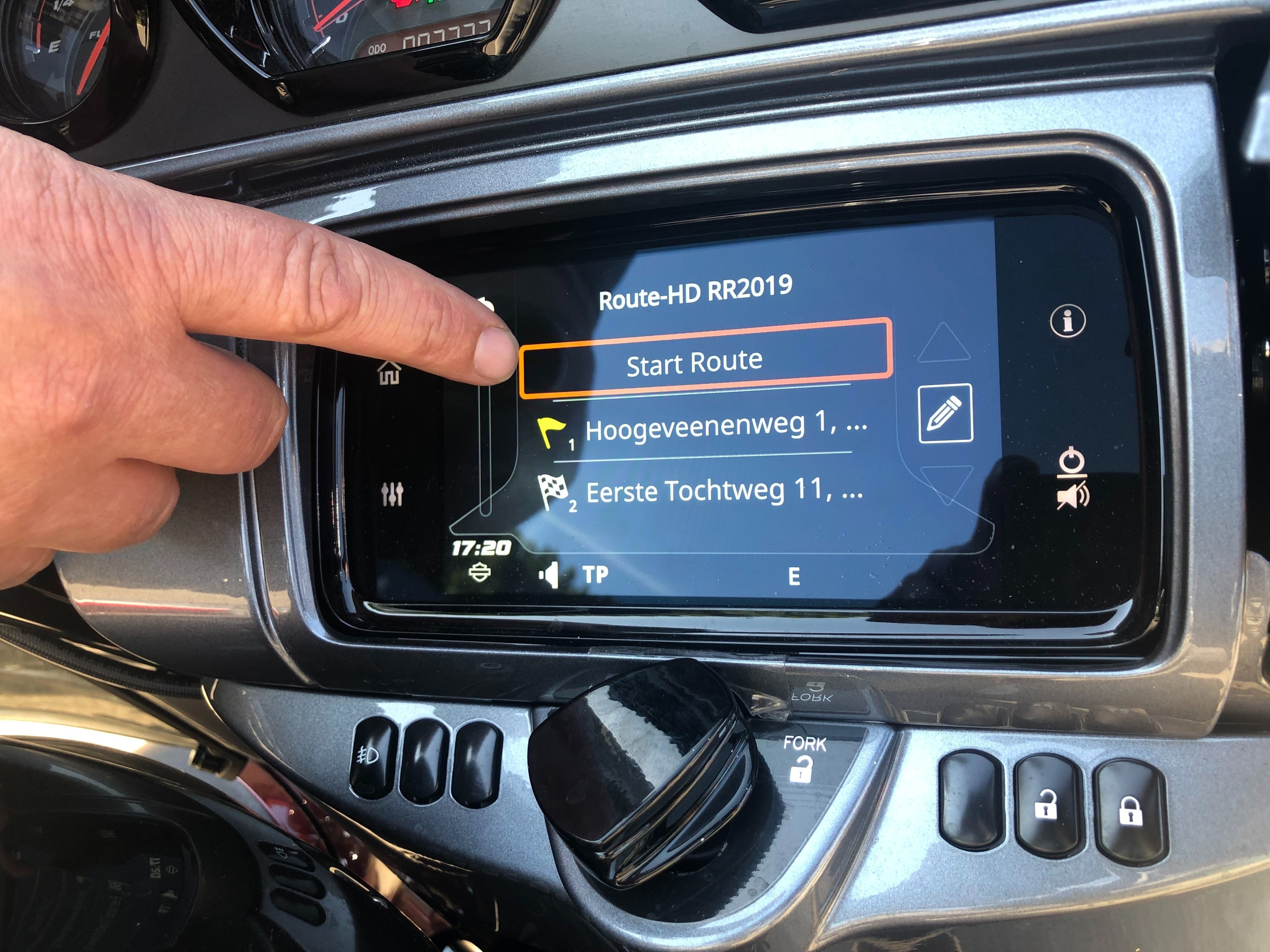

  5. Press 'Start Route';
  6. Wait until the BoomBox has finished loading the route. You can track its current progress displayed on the right.

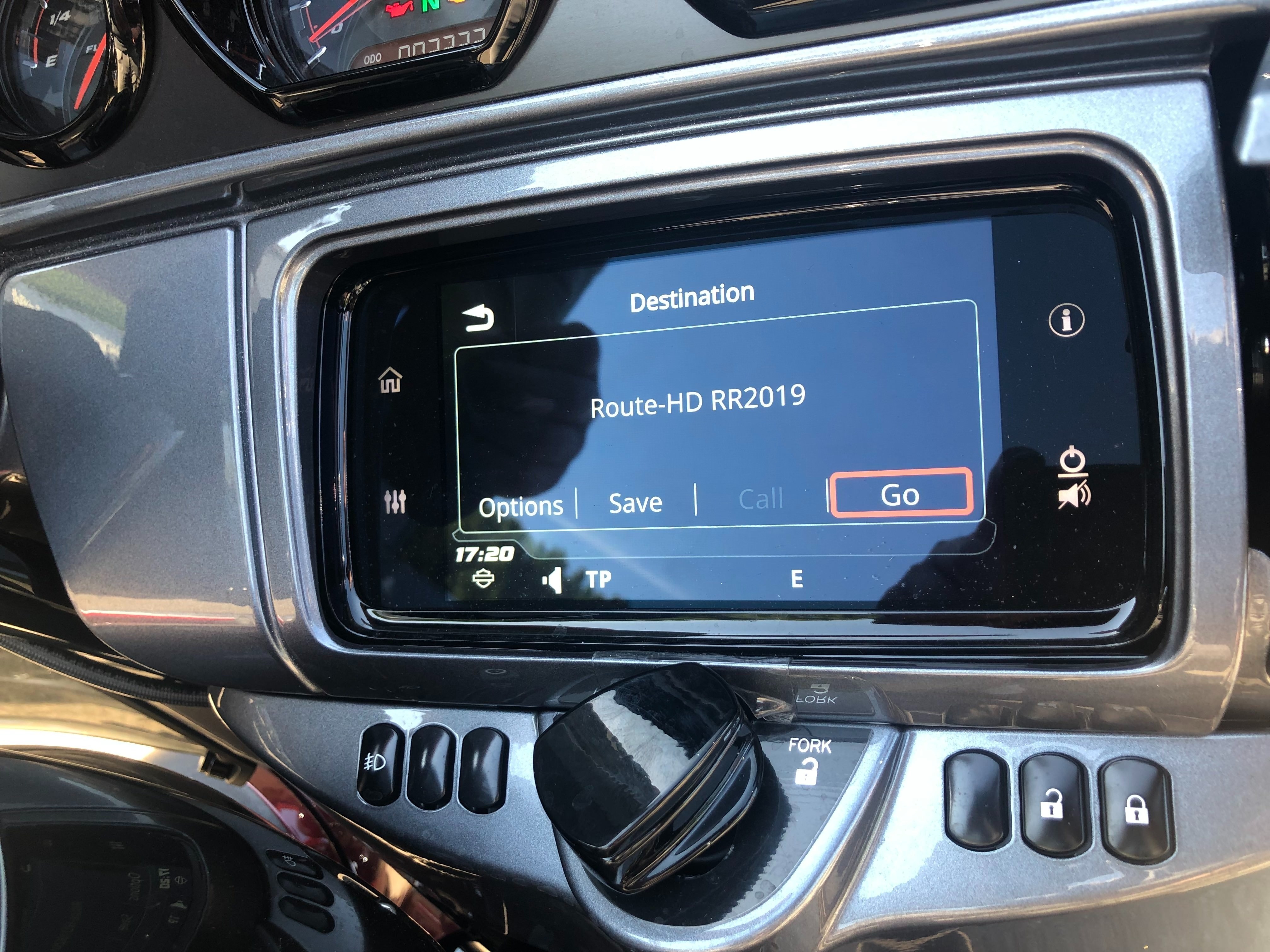

  7. Press "Go" to start the navigation
